2013年2月23日 星期六

Plasma-555 .....Origin 緣起



2012年底在台看到有人要賣YL-555.


看到..."555" 讓我想起另人神往的 ..."WE-555".

別說有沒有.......連聽都沒聽過.

沒辦法動了念頭 ....  想說...怎比啊!

去前先在家用S.G. 餵給Altec288b 加了horn.
想說去一樣用S.G. 餵給YL-555.同音壓.


YL-555就像的spec. 250hz ok... 密度韻味好的.....Altec288b沒得比了.....她沒horn呢.
且.Altec288b 400hz開始薄要騷蝦的樣子.
YL-555 200hz音壓沒啥變 不敢再降.

密度韻味好的.....神往啊.


又來了秉持 Diy 到底 的骨子!
買不起.... 買不到的.... 來個畫虎不成...XX犬.

轉眼間也有了 ....

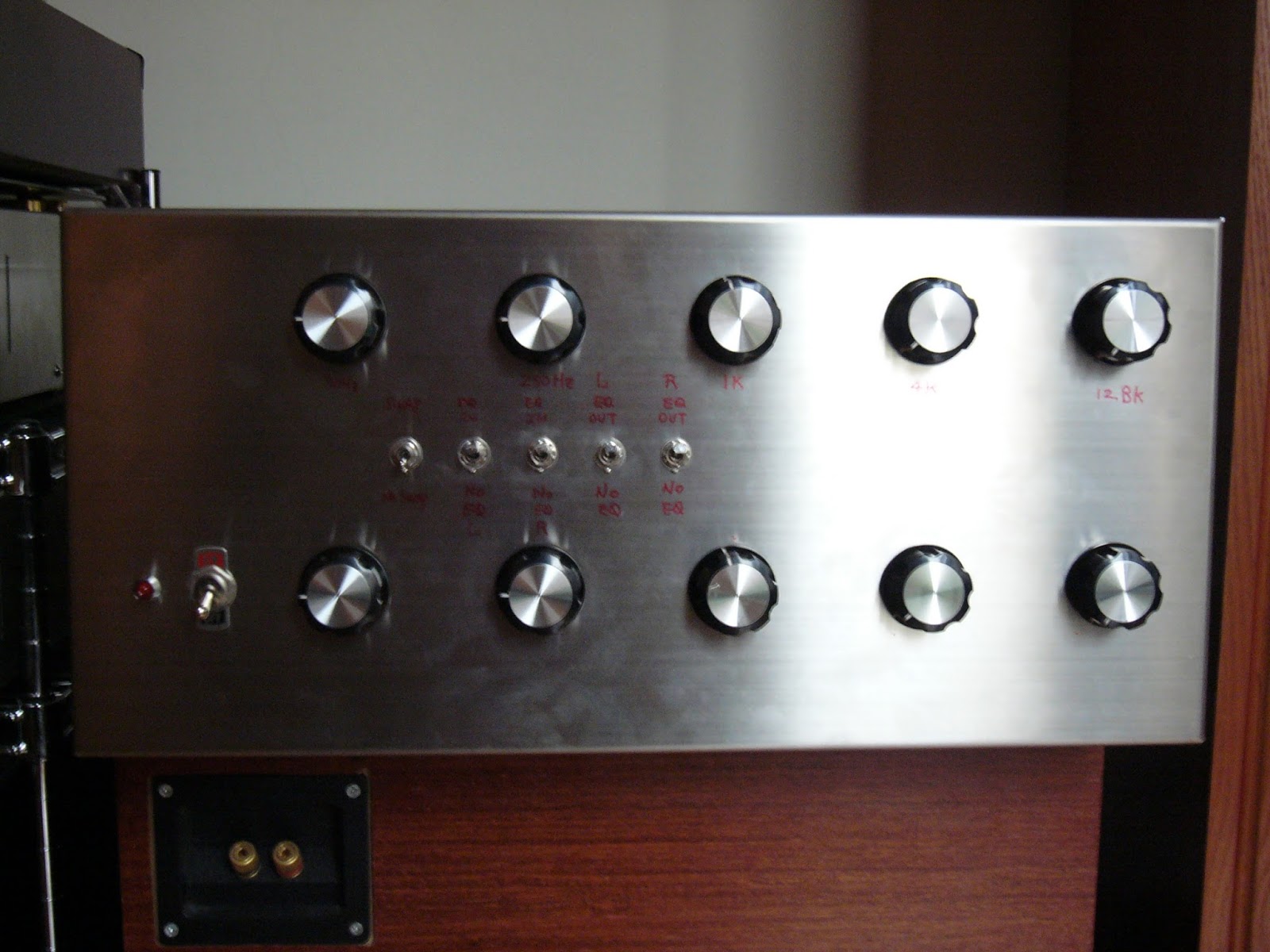

線性EQ (like FM268)..../梨子高音.



心一橫來個射日般的目標.......plasma-555.
這是再請教澳門客大大......後暫自訂.....plasma-555 規格 freq.250hz~4khz.

胆艺轩    forum 有ALTEC有TAD當然要有JBL用家大聚会 - 樓主 澳門客大大 精闢見地與分析.

見地與分析1.
不單300hz有號角,就連更低的百多周也有號角,號角只是物理上集聚聲音達到擴聲的一種方法,這是因為越向低頻,聲音效率越低,但驅動頭音膜基於先天設計關係,在同頻率下比紙盆單元工作速度快,所以在中頻至高頻,驅動頭音膜必然好於紙盆單元,這是物理上的問題
 但在低頻上,由於不需快速振動,所以紙盆單元才有良好發揮.

見地與分析2.
以前我曾用台525電分去試分頻點,分別測試288-16g,2482,375,hf-4000等我手上的大驅動頭,發現有二組分頻點都會容易出好聲
 第一組是380至4200hz之間,這組聲音厚,快速,雄渾,但這組配號角較困難,適合古典及爵士音樂.
 第二組是650至8000hz之間,這組聲音雖然較薄,但更快,這組配號角較容易,適合現代及流行音樂.
.......感激有澳門客大大分享.


plasma-555 已在實作與意念中修正前進.

實作想法1.是 midrange plasma 在那頻點工作效率好嗎? 比紙盆好多少?音壓夠嗎?
                       RIAA (250hz~4khz) gain profile need modify.


實作想法2. 30W/one channel 60hz可聽到 120hz 很大聲 因gain profile 上升很大 .
                plasma midrange 發聲是AM modulation on plasma flame and 人耳 demodulation.
                空氣傳遞.

實作想法3.   再不行plasma 我有90w/one channel的. 免horn.


Diy 到底!

2013年2月16日 星期六

阿離在咖啡店


阿離在咖啡店.
中音路- 離子高音 Plasma Tweeter of 2.1 channel .


剛好放在左右聲道中間.
3 way speaker JBL 2405H/Altec 288C/Utha15'' Alnico5
.....+ 中音路- 離子高音 Plasma Tweeter of 2.1 channel .



阿離在在天花板上.

2013年2月5日 星期二

Audio gear fans dream WE555 .....音頻設備球迷的夢想 WE-555


WE Acoustic 555 mid range horn driver.
Specifications:
Frequency response: 100~5,000Hz Field driver


The early Western Electric theater loudspeakers were basically one-way designs, consisting of a large curved ("snail shaped") exponential horn. The Western Electric model 555 driver was used with these horns, and frequency response was band-limited to the range from about 100 Hz to 5000 Hz. In time, Western Electric added a high frequency unit as well as a set of low frequency 18-inch drivers to augment the response of these systems. Jensen 18-inch woofers in a large open-back baffle were coupled with a horn tweeter, which extended the response of the basic system downward to about 50 Hz and upward to about 8 kHz. These modifications to the basic Western Electric one-way system were introduced in 1931 and represented a major step forward in exhibition sound quality.

WE555 need add 15A horn co-work then reach to 100Hz.
WE15A horn 看起來很小其實不然 .......從日本另一燒友的設置WE15A就大的有些嚇人.
搞起來老婆會把你趕出去



再看日本人對555做了甚麼.
在日本真真的第一顆555 是YL  Acoustic 555下面著個.

YL  Acoustic 555 mid range horn driver.
Specifications:
Frequency response: 100~5,000Hz  Alnico
號稱日本西電 555 完全一致響應.


爾後...


連超強力型都出來了.......真是輸人不輸陣.

Y L Acoustic 550N mid range horn driver.
Specifications:
Frequency response: 100~6,000Hz
Independence: 16 ohms
Max power handle: 20W.....強力型.

日本西電.... 不應是YL-555 響應要到100Hz 附近也需有超超大號角的.
接下來看紅框內諸元.....也沒在輸的.




醬知道有多大嗎.

2013年2月4日 星期一

阿離三姐妹試新妝.....2


Finish side view.

Left one is Plasma mid / Right one is Plasma tweeter




Another  side view.

走過咖啡店早年歲月

咖啡店從無到有... 從有到無... 歲月的流逝 ,剩下的祇有記憶.

從無到有--- 舊店設立.
從有到無--- 拔營....牧咖啡的咖啡人.....移址, 啡客...........的遷徙.

咖啡店=咖啡+音樂

咖啡=日式咖啡+美式咖啡
日式咖啡=日式單品+日式花式咖啡
美式咖啡=美式單品+美式花式咖啡
.........."請不要找茶".

音樂=古典音樂+真空管
