ToyX project EQ Linearizer study case4

Finish each band circuit by jump wire.

Finish EQ power circuit and do placement estimate.

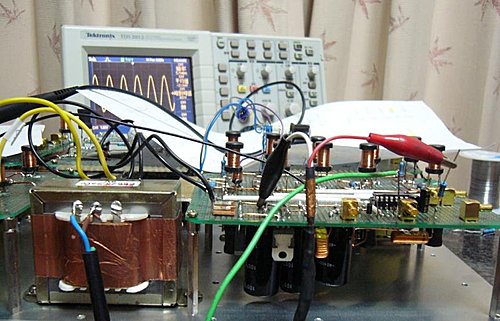

Test two bands EQ function together (by cascade).

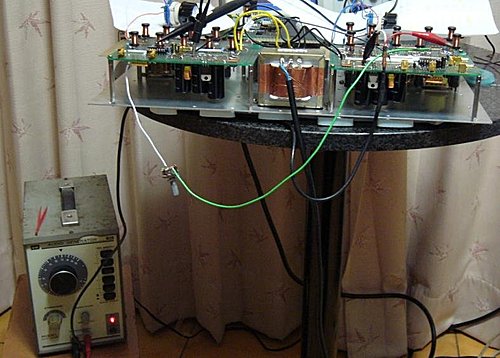

Feed SG signal in band 4 for function test.


Measure output signal form band 5 and estimate circuit where need modify for meet design.

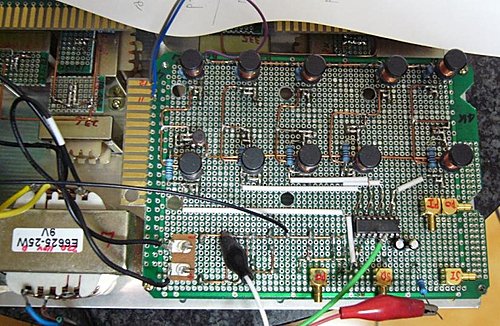

Band 4 top view.


Today receive EQ box order from two month ago.
This is front view with ten volume knobs. Each channel with five knobs to control EQ.


Inner picture.

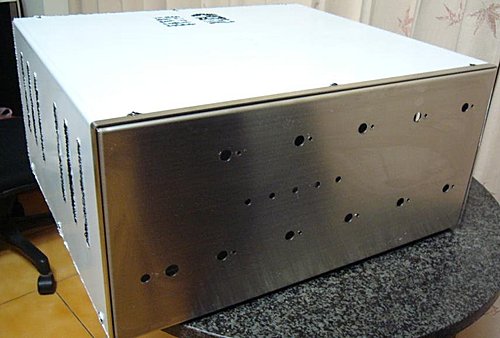

Rear picture.
